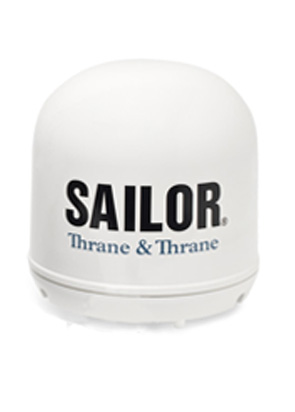

SAILOR 150 FleetBroadband widens the possibilities of high speed internet access at sea and provides the opportunity to have the internet on almost any boat. Based on the same design values and high quality build as the market leading premium SAILOR FleetBroadband solutions, SAILOR 150 FleetBroadband ensures that smaller and more vessels can experience the same reliability and ease of use that high-end SAILOR systems offer.
SAILOR 150 FleetBroadband offers several benefits that until now have not been available in a single solution designed for smaller vessels.
With SAILOR 150 FleetBroadband the possibilities are endless, only your imagination sets the limits!
Features
Voice and data simultaneously
IP connection for e-mail and internet/intranet access
Rugged IP Handset
Digital satellite phone service with exceptional call quality
Specifications
Inmarsat FleetBroadband approved
Compliant to RTTE, CE Marked
FCC Testet to FCC part 25
Frequency Band
Rx 1525.0 - 1559.0 MHz
Tx 1626.5 - 1660.5 MHz
Ch. width 10.5 -189 kHz, Rx
21 - 189 kHz, Tx
Recommended Antenna Cable
Cable loss max/min 20 dB at 1,62 GHz and 1.0 Ω DC loop resistance
3 dB at 36 - 4 dB at 54 MHz
Global Services
Voice 4 kbps AMBE+2
Standard IP 150/150 kbps
SMS Up to 160 characters
Antenna Connector
ADU TNC, female
BDU TNC, female
BDU Interfaces
Power On/Off button
DC heavy duty power input connector with Remote on/off and locking mechanism
2 10/100Mbit Ethernet LAN user ports with Power over Ethernet (PoE)
Sim card
Factory default reset button
1 Independent RJ-11 phone 2-wire connectors
5 I/O connector with General Purpose I/Os:
Power LED
Power Supply and Consumption
DC input range (isolated) 10 to 32V DC
Power (max), 120 W @ 10-32 V
incl. antenna & PoE output
Environmental Conditions
Ambient Temperature -25 to +55°C
Storage -40 to +85°C
Survival (power on, non functional) -40 to +80°C
Automatic thermal surveillance shuts down system gradually in ease of own
temperature
BDU operating humidity 95% non-condensing at +40°C
ADU enclosure IPX6
ADU operating humidity “Exposed” according to EN60 945
BDU enclosure IP31
Icing (survival) Max 25 mm
Vibration (ADU)
Vibration, operational Random spectrum 1.05 g rms x 3 axes:
5 to 20 Hz: 0.02 g2/Hz
20 to 150 Hz: -3 dB/octave
Vibration, non-operational Random spectrum 1.7 g rms 2 h x 3 axes
(6 h total):
5 to 20 Hz: 0.05 g2/Hz
20 to 150 Hz: -3 dB/octave
Mechanical Shock
20g/11 half-sine
Telephone Functionality
Phone book
Message indication
Restricted dialling
Traffic logging
Set-up and Router Functionallity
Web server
Built-in NAT router
Network management
SIP server
11 PDP contexts
PPPoE
Ship Motion
Roll +/- 30 deg. per. 4 s, max 0.7 g tan.
Pitch +/- 15 deg. per. 3 s, max 0.6 g tan.
Yaw +/- 10 deg. per. 5 s, max 0.3 g tan.
Surge +/- 0.5g
Sway +/- 0.5g
Heave +/- 0.7g
Turning rate +/- 36˚/s; ACC 12˚/s²
Headway speed 22 m/s (42 knots)
Wind 100 knots
Dimensions and Weight
ADU 291.9 mm x Ø275.6 mm, 3.9 kg
BDU 278 mm/231 mm/41 mm, 2.0 kg
