Iridium 9522B - Iridium Satellite Phone Sales & Satellite Phones & Accessories

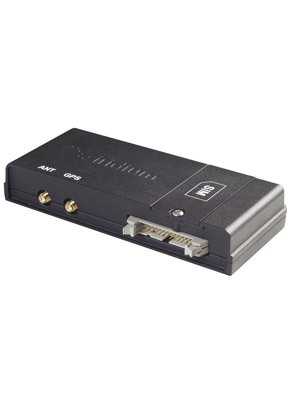

The 9522B LBT is intended for incorporation into a final Iridium application / product that would supply power to the unit as well as the appropriate data and or voice interface.

Data applications are also supported through an RS-232 serial interface and the 9522B uses the DPL bus for digital voice communications.

Transceiver Features

. AT command set
. RS 232 Serial interface
. 26-pin IDC connector
. Global coverage
. Continuous circuit switched data
. 4.5 – 32V DC power input
. Cable assembly required
. Fully Certified

Iridium Postpaid Aust-30 Plan

$0.00

Plans at a glance (inclusive of GST)
Monthly Subscription				$30.00
Included Free Call				$10.00
Plan Duration (months)				12

Iridium Postpaid Aust-50 Plan

$0.00

Plans at a glance (inclusive of GST)
Monthly Subscription				$50.00
Included Free Call				$20.00
Plan Duration (months)				12

Iriduim Postpaid Aust-80 Plan

$0.00

Plans at a glance (inclusive of GST)
Monthly Subscription				$80.00
Included Free Call				$30.00
Plan Duration (months)				12

Promotions

Beam Terra 800

Terra 800 is an all-in-one communications terminal, specifically designed to be utilized in a wide variety of land based applications; such as a dedicated telephone service or a back up emergency telephone system that can be deployed throughout the world.
Featuring an intelligent RJ11/POTS interface to enable connection of up to 5 standard corded/cordless phones or integration to a PABX system, supporting cable runs of up to 600m (2000’) and presents standard ring, busy and dial tones.

$2110.00

Iridium Open Port

Iridium OpenPort is a complete solution that works everywhere. The 66 cross-linked Iridium LEO satellites provide coverage and unmatched network quality anywhere on the planet.

$4887.00

Physical Specifications
	Length	162mm (6.38’)
	Width	81mm (3.16’)
	Depth	28mm (1.10’)
	Weight (approximate)	420g
RF Characteristics
	Average power during a transmit slot (max)	7W
	Average Power during a frame (typical)	0.6W
	Receiver Sensistivity at 50Ω (typical)	-118.5dBm
	Receiver Spurious Rejection at offsets > 1 MHz (typical)	60dB
	Frequency Range	1616 MHz to 1626.5 MHz
	Duplexing Method	TDD (Time Domain Duplex)
	Oscillator Stability	± 1.5 ppm
	Input/Output Impedance	50Ω
	Multiplexing Method	TDMA / FDMA
Power Input Specification & Consumption
	Main Input Voltage Range	+4.0V DC to +32V DC
	Main Input Voltage - Ripple	40mV peak to peak
	Consumption at +5VDC
	Input Standby current (average)	250mA
	Max current during call	2.5A
	Typical current during call	800mA
	Power Average - Voice / Data Call	4W

Activation Fee				$35.00
Flagfall				$0.45

From Iridium phones inside AUS (per minute)
Iridium to PSTN or Cellular				$1.95
Iridium to Iridium				$1.95
Iridium to Other Sat System				$18.00
Iridium to Customer Care				$0.00
Iridium to Personal Mailbox				$1.95
Iridium Direct Internet Data Call				$1.95
SMS Message (per message)				$1.20

From Iridium phones outside AUS (per minute)
Iridium to PSTN or Cellular				$2.55
Iridium to Iridium				$2.55
Iridium to Other Sat System				$18.00
Iridium toCustomer Care				$0.00
Iridium to Personal Mailbox				$1.95
Iridium Direct Internet Data Call				$2.55
SMS Message (per message)				$1.20

Activation Fee				$35.00
Flagfall				$0.40

From Iridium phones inside AUS (per minute)
Iridium to PSTN or Cellular				$1.72
Iridium to Iridium				$1.72
Iridium to Other Sat System				$18.00
Iridium toCustomer Care				$0.00
Iridium to Personal Mailbox				$1.72
Iridium Direct Internet Data Call				$1.72
SMS Message (per message)				$1.00

From Iridium phones outside AUS (per minute)
Iridium to PSTN or Cellular				$2.55
Iridium to Iridium				$2.55
Iridium to Other Sat System				$18.00
Iridium toCustomer Care				$0.00
Iridium to Personal Mailbox				$1.72
Iridium Direct Internet Data Call				$2.55
SMS Message (per message)				$1.00

Activation Fee				$35.00
Flagfall				$0.40

From Iridium phones inside AUS (per minute)
Iridium to PSTN or Cellular				$1.50
Iridium to Iridium				$1.50
Iridium to Other Sat System				$18.00
Iridium toCustomer Care				$0.00
Iridium to Personal Mailbox				$1.50
Iridium Direct Internet Data Call				$1.50
SMS Message (per message)				$0.80

From Iridium phones outside AUS (per minute)
Iridium to PSTN or Cellular				$2.55
Iridium to Iridium				$2.55
Iridium to Other Sat System				$18.00
Iridium toCustomer Care				$0.00
Iridium to Personal Mailbox				$1.50
Iridium Direct Internet Data Call				$2.55
SMS Message (per message)				$0.80
