Beam Terra 800

Beam Terra 800

Beam, Satellite Know-How

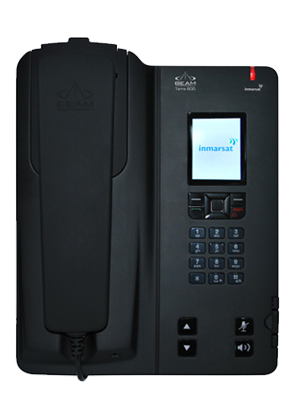

Terra 800 is an all-in-one communications terminal, specifically designed to be utilized in a wide variety of land based applications; such as a dedicated telephone service or a back up emergency telephone system that can be deployed throughout the world.

Part Number:
$2110.00

Other key features include, a secondary SIM socket to override internal SIM, an active privacy handset, in-built handsfree speakerphone, USB data, inbuilt phone book, SMS, adjustable ring tones, desk or wall mountable.

The Terra 800 is designed to operate with the Inmarsat “Link Phone” service and is supplied with a dedicated high quality directional/fixed antenna system to provide a completely integrated solution that is ready for use anytime.

KEY FEATURES

DESIGN

  • High quality IP54 rated enclosure
  • Colour LCD Screen
  • Compact all in one design
  • Wall or desk mounting options
  • Locking bolt to wall mounting
  • Accessible control buttons
  • Integrated antenna connections
  • Slimline privacy handset
  • In-built speakerphone
  • Cable routing LHS/TOP/BOTTOM
  • Dual SIM card enclosures

POWER

  • 10–32V DC Input
  • 110/240V AC plug pack, included

INTELLIGENT POTS/RJ11 INTERFACE

  • Support up to 600m (2000’) of RJ11 cable runs
  • Standard dial, ring & busy tones
  • Integrates easily to PABX System
  • Support standard corded, cordless and DECT phones
  • Auto-dial & speed dials available

VOICE CALLING FEATURES

  • Integrated easy to use phone book
  • Privacy handset calling
  • In-built handsfree speakerphone
  • Access from PBX or other corded/cordless handsets
  • Bluetooth headsets (not included)

OTHER KEY FEATURES

  • SMS
TECHNICAL SPECIFICATIONS
AVERAGE POWER CONSUMPTION (Passive Antenna Connected) CURRENT @ 15V AVERAGE POWER
Standby 0.17 A 2.6 W
Transmit (RJ11/POTS call) 0.31 A 4.7 W
Transmit (Spreakerphone) 0.27 A 4.0 W
Peak Current 0.70 A 10.5 W
PHYSICAL SPECIFICATIONS
Dimensions 241 x 185 x 93 (mm) 9.49 x 7.28 x 3.66
(inches)
Weight TR800 Only 1.27kg 2.80lb
ENVIRONMENT SPECIFICATIONS
Operation -20°C to +55°C -4°F to +131°F
Storage -30°C to +80°C -22°F to +176°F
Humidity <=75% RH
TRANSCEIVER
Inmarsat - 4 Satellite
GMR - 2+ Frequency Bands
Tx Operating Frequency 1626.5 - 1660.5 MHz
Rx Operating Frequency 1518 - 1565 MHz (Inmarsat)
1565.19 - 585.65 MHz (GPS)
RF Output Impedance 50 Ohms
Carrier Frequencies Channel 0 = 1626.525 MHz
Channel 169 = 1660.475 MHz
TX Modulation GMSK
RX Modulation OQPSK
CONNECTORS / INTERFACES
POTS/RJ11 RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.
Inmarsat Antenna TNC-Female
GPS Antenna SMA-Female
10-32 V DC 4-way microFit (AC/DC adator, or DC lead)
Privacy Handset Port RJ9 connector
Configuration/Data* USB Mini B
Speakerphone In-built speaker/microphone
CERTIFICATIONS
Inmarsat, FCC, CE Compliance, Electrical Safety, RoHS, Industry Canada, C-Tick
IP54 Rating
5 = Protected against dust limited ingress (no harmful deposits).
4 = Protection against water sprayed from all directions - limited ingress permitted.
KlT CONTENTS
Terra 800
ISD700 Directional/Fixed Antenna (Passive)
Privacy Handset
110 - 240V AC Plug Pack 15v DC Out
10 - 32V DC Power Cable
1 x Spring cup (attached to terminal)
1 x Springless cup
USB Cable
2m Alert wiring loop
Wall mounting plate
User manual
Quick Start Guide
ACCESSORIES
ISD936 IsatDock 10m SMA/TNC cable kit (Passive)
ISD937 IsatDock 20m SMA/TNC cable kit (Passive)
ISD939 IsatDock 30m SMA/TNC cable kit (Passive)
ISD940 IsatDock 40m SMA/TNC cable kit (Passive)
ISD941 IsatDock 50m SMA/TNC cable kit (Passive)
RST055 Beam UPS Battery Pack
Oceana-Terra Camparison Chart
