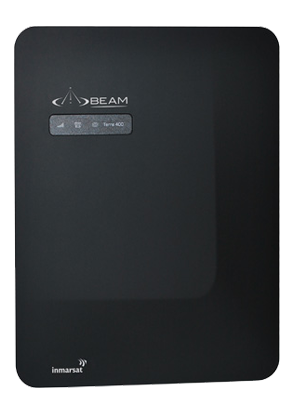

Beam Oceana 400

Beam Oceana 400

Superior Coverage. Exceptional Quality

Oceana 400 is a slimline terminal purposely designed for use in maritime applications where the simplest access to reliable voice and data communications services is required. Featuring an intelligent RJ11/POTS interface enabling connection of up to 5 standard corded/cordless phones or integration to a PABX system, supporting cable runs of up to 600m (2000’) and in-built intelligence to support standard ring, busy and dial tones.

Other key features of the Oceana 400 include, a high quality IP53 rated enclosure (rainproof when wall mounted), wall or desk mountable and USB data access. The Oceana 400 is designed to operate with the Inmarsat “FleetPhone” service and is supplied with a dedicated active marine grade antenna system to provide a completely integrated solution that is ready for use anytime.

Part Number:
$2032.00

Features

Design

  • High quality enclosure
  • IP53 rated (rainproof)
  • Wall mounting option
  • Integrated antenna connections
  • SIM socket rear of terminal

Power

  • 10–32V DC input
  • 110/240V AC plug pack included

Intelligent POTS/RJ11 Interface

  • Support up to 600m (2000’) of RJ11
  • Dial, ring & busy tones
  • Integrated to PABX system
  • Support standard corded, cordless or DECT phones
  • Auto-dial & speed dials available

Other Features

  • Status LED indication for registration/signal, call and messaging
  • USB data access
  • Basic SMS support form Falcon application (via USB port)
  • Rear access SIM Port
  • Includes BEAM IsatDock Maritime Antenna

Standby

0.21A

3.1W

Transmit

0.57A

8.5W

Peak Current

1.73A

25.9W

PHYSICAL SPECIFICATIONS

Dimensions

240 x 190 x 53 (mm)

8.0 x 7.5 x 2.1

(inches)

Weight

0.58kg

1.28lbs

ENVIRONMENT SPECIFICATIONS

Operating Range

-20°C to +55°C

-4°F to +131°F

Storage

-30°C to +80°C

-22°F to +176°F

Humidity

< = 75% RH

TRANSCEIVER

Inmarsat-4 Satellite

GMR-2+ Frequency Bands

Tx Operating Frequency

1626.5 - 1660.5 MHz

Rx Operating Frequency

1518 – 1565 MHz (Inmarsat)

1565.19 – 585.65 MHz (GPS)

RF Output Impedance

50 Ohms

Carrier frequencies

Channel 0 = 1626.525 MHz

Channel 169 = 1660.475 MHz

TX Modulation

GMSK

RX Modulation

OQPSK

CONNECTORS/INTERFACES

POTS/RJ11

RJ11/2-wire, 5REN @ 600m, Adjustable dial, ring, busy tone configured frequency and adaptive impedance.

Inmarsat Antenna

TNC-Female

GPS Antenna

SMA-Female

10-32 V DC

4-way microFit (AC/DC adaptor, or DC lead)

Configuration/Data

USB Mini B
